Cylindrical Diesel Fuel Tanks

& Mounting Kits
Ready for Immediate Shipment

Cleveland Tank column graphicContact Cleveland Tank button

We offer our cylindrical fuel tanks in steel or aluminum. The tanks and mounting kits listed on this page will ship within 48 hours of placing an order.

Please contact us if you need something not shown on this site.

Steel cylindrical tanks photo

Steel, Cylindrical, Certified for Side-Mount Applications
P/N Gallon Dia. L Weight Mounting Kit P/N Notes
CS1635CC-00 35 16” 41” 85 KJ16-2
CS1660LC-50 60 16" 72" 135 KJ16-1 1
CS2250CC-00 50 22” 34” 100 KJ22-2
CS2460CC-00 60 24” 34” 111 KJ24-2
CS24100CC-00 100 24” 56” 173 KJ24-3
CS2675CC-01 75 26” 36” 136 KJ26-2

1 Replace the OEM / Mitsubishi with additional capacity.

Aluminum cylindrical tanks photo

Aluminum, Cylindrical, Certified for Side-Mount Applications
P/N Gallon Dia. L Weight Mounting Kit P/N Notes
CA1635CC-20 35 16" 41" 35 KJ16-2 1
CA2250CC-00 50 22” 34” 65 KJ22-2
CA2460CC-00 60 24” 34” 61 KJ24-2
CA24100CC-00 100 24” 56” 82 KJ24-3
CA2675CC-00 75 26” 35” 60 KJ26-2
CA26100CC-00 100 26” 47” 75 KJ26-3

1 Popular Tank replacing OEM steel tanks, Mitsubishi, UD Nissan, GMC

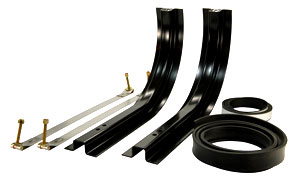

Cylindrical tank mounts photo

Note: Kits come with 2 "J" brackets as standard but the tank location, size and application may require more brackets. Please let us know the details of your specific requirement

Mounting Kits - Packaged in Sturdy Carton
P/N Bracket Qty. Per Kit Strap Qty. Per Kit Strap Insulator Qty. Per Kit Bracket Insulator Qty. Per Kit Weight
KJ16-2 "J" 2 Steel 2 10' Roll 1 10' Roll 1 50
KJ16-1 "J" 1 Steel 1 10' Roll 1 10' Roll 1 35
KJ22-2 "J" 2 Steel 2 10' Roll 1 10' Roll 1 65
KJ24-2 "J" 2 Steel 2 10' Roll 1 10' Roll 1 65
KJ24-3 "J" 3 Steel 3 10' Roll 1 10' Roll 1 80
KJ26-2 "J" 2 Steel 2 10' Roll 1 10' Roll 1 65
KJ26-3 "J" 3 Steel 3 10' Roll 1 10' Roll 1 80

Contact us about cylindrical tanks
